29" Touring Mountain Bike Explore 540 - Blue/Black

Designed for regular bike touring.

In a nutshell

Weight: 12.8 kg in size M (without pedals) Frame material: Aluminium Type: Hardtail Wheel size: 29" (M / L / XL), 27.5" (S) Fork travel: 120 mm Drivetrain: 1x10 Brakes: Hydraulic Seatpost: Aluminium Frame, stem and handlebar warranty: lifetime

Weight

S: 12.6 kg M: 12.8 kg L: 12.85 kg XL: 12.95 kg Net weight without pedals

FRAME

Composition: 6061 butted aluminium 148 mm x 12 mm Boost rear axle Bolt through axle 73 mm threaded bottom bracket (BSA) Protective cover for dropper seat post cable and housing 31.6 mm seat tube Tapered head tube 2 bottle cage mounts (1 on size S) / Pannier rack mounts

DRIVETRAIN

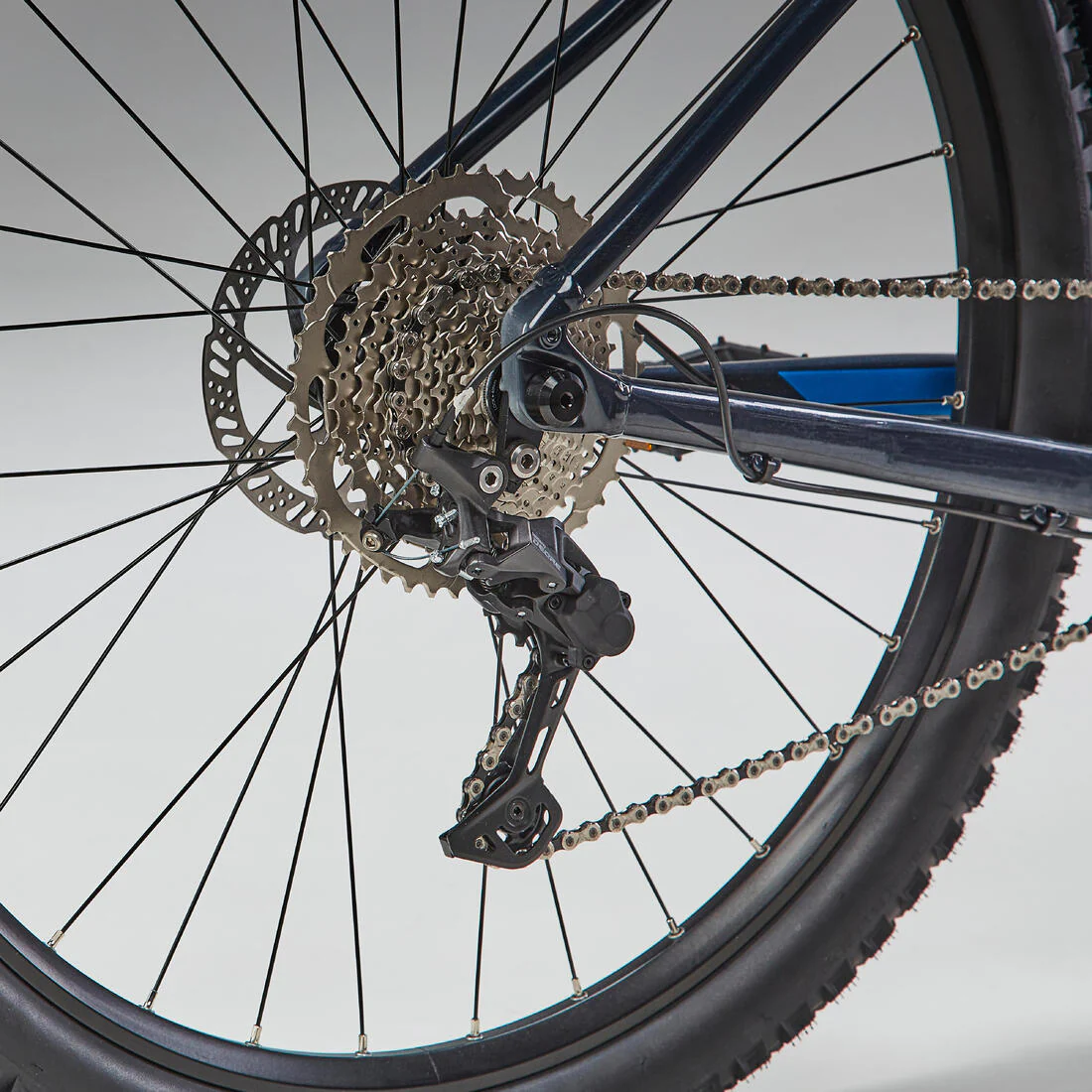

Shimano CUES 30 T single chainring (compatible with 32 T) 175 mm crank "Thru axle / external bearing" bottom bracket 10-speed shifter and rear derailleur 11-46 cassette KMC X10 chain

Suspension

Suntour RC32 X-Fusion fork AIR fork 120 mm travel Stanchion diameter: 32 mm 6-sided through-axle bolt 15 x 110 mm Boost format Turnkey lockout on the fork

Wheels

29" (M / L / XL), 27.5" (S) Tubeless ready rims, Presta valve 23 mm inner width (28 mm outer) 32 spokes Thru axle / Boost format hub 6-bolt disc Shimano/Sram freehub Sealed bearings

BRAKES

Hydraulic disc brakes Tektro TK-M276 Number of pistons: 2 Front disc: 180 mm Rear disc: 160 mm Adjustable reach: Yes

Riding position

Handlebar: Rockrider Sport Material: Aluminium Width: 740 mm (M / L / XL), 700 mm (S) Stem: Rockrider Material: aluminium Size: 60 mm 4 adjustment increments: +0 mm, +5 mm, +20 mm, +25 mm Compatible with Garmin, Mio or Bryton bike computer / GPS brackets Grips: Rockrider Ergonomic

Saddle and seat post

Rockrider Ergofit PRO saddle Rockrider Sport seat post Material: Aluminium Diameter: 31.6 mm Length: 400 mm (S / M / L), 450 mm (XL) With tool holder (4 mm and 6 mm Allen keys included) Compatible with dropper posts

Tyre

Hutchinson Kraken 29"x2.3" (M / L / XL), 27.5"x2.3" (S) Carcass: 60 TPI Tubeless ready

PEDALS

Rockrider 520 Grip resin flat pedals.

ACCESSORIES INCLUDED

Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.

The Shimano 10-speed single chainring provides endurance and flexibility.The Boost format makes the wheels more rigid, so they are more efficient and precise.

Control

Enjoy the raised position, adjustable stem, 120 mm travel suspension.

Efficiency

29" wheels (27.5" in S), Shimano 10-speed chainring

Ease of use

Change speed with one hand, without even thinking: SINGLE CHAINRING DRIVETRAIN

Cushioning

120 mm X-Fusion RC32 air fork

Lifetime warranty

ROCKRIDER offers a lifetime warranty on the frame, handlebars and stem

Designed for regular bike touring.
